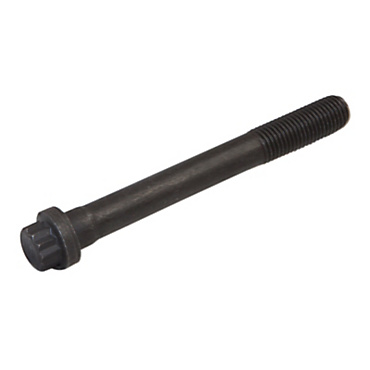

1383252 CATERPILLAR 138-3252: M20X2.5 Thread 12 Point Head Bolt | Cat® M20x2.5 Thread 170mm Long 12 Point Head Bolt

Type: 12 Point Head Bolt
Material: STEEL
Bolt Length (mm): 170
Bolt Type: 12 Point
Material Description: Cat Class 11.9. Head Marking - 11.9 (1170 MPa Ultimate Tensile Strength)
Coating: Zinc Phosphate + Oil offers corrosion protection up to the point of assembly (recommend painting for external applications). Salt spray resistance of 72 hours to red rust. Coating color - dark grey to black.
Thread Size (dia x pitch) (mm): M20X2.5
Grip Length (mm): 118
Drive (mm): 20
Thread: Coarse
Head Height (mm): 20
Flange Diameter (mm): 30
Thread Size (mm): M20
Grade: 11.9
Hole Thread Pitch: 2.50
Overall Length (mm): 170
