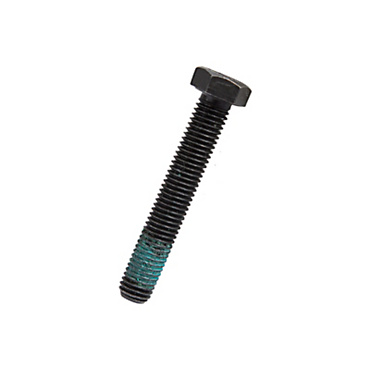

1364189 CATERPILLAR 136-4189: M12 X 1.75 Hexagonal Head Bolt | Cat® Hexagonal Head Bolt for transmission oil cooler tightly secures the transmission oil cooler, facilitating effective fluid cooling

Thread Size (dia x pitch) (mm): M12X1.75
Bolt Length (mm): 75
Head Height (mm): 7.8
Bolt Type: Hex Head
Coating: Zinc Phosphate + Oil offers corrosion protection up to the point of assembly (recommend painting for external applications). Salt spray resistance of 72 hours to red rust. Coating color - dark grey to black.
Drive (mm): 18
Lock Mechanism: Thread Sealant / Adhesive
Grip Length (mm): 5.25
Material: STEEL
Thread: Coarse
Material Description: ISO 898-1 Class 10.9. Head Marking - 10.9 (1040 MPa Ultimate Tensile Strength)
Thread Size (mm): M12
Grade: 10.9
Locking Feature: Adhesive Patch
Hole Thread Pitch: 1.75
Overall Length (mm): 75
