- Caterpillar 1242320 124-2320: Permanent Coupling | Cat Permanent Coupling ORFS – Straight Female Swivel

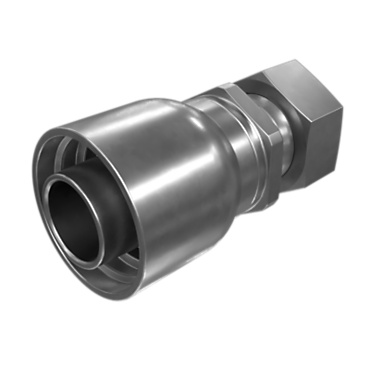

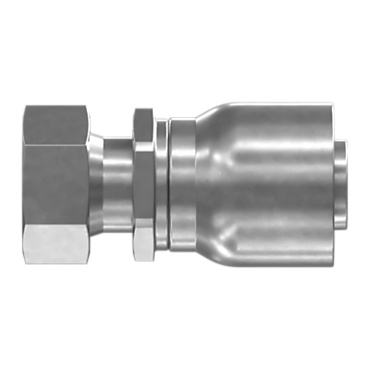

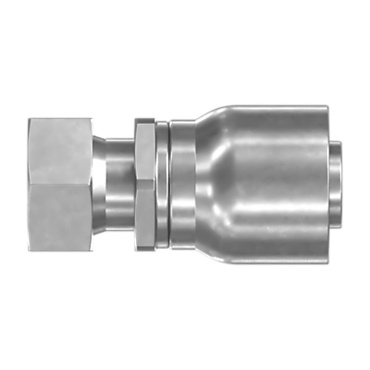

1242320 CATERPILLAR 124-2320: Permanent Coupling | Cat Permanent Coupling ORFS – Straight Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242320 |
| Name | 124-2320: Permanent Coupling | Cat Permanent Coupling ORFS – Straight Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: -24 ORFS FEMALE SWIVEL
Length (mm): 120
Cut-Off Factor (mm): 83
Cut-Off Factor (in): 3.27
Recommended Hose Size (mm): 38.1
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R4
Hex Size (mm): 57.15
Seal Type: NBR 8T-0315, FKM 228-7095
Description: Permanent Coupling 24MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: -24 ORFS FEMALE SWIVEL
Length (mm): 120
Cut-Off Factor (mm): 83
Cut-Off Factor (in): 3.27
Recommended Hose Size (mm): 38.1
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R4
Hex Size (mm): 57.15
Seal Type: NBR 8T-0315, FKM 228-7095
Description: Permanent Coupling 24MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
