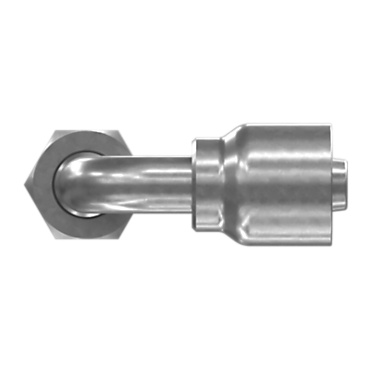

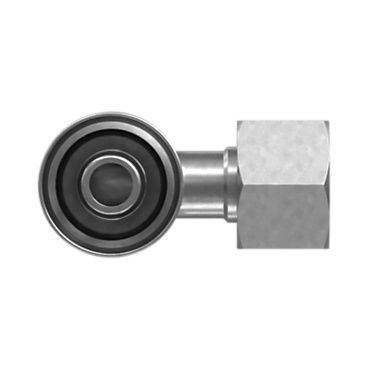

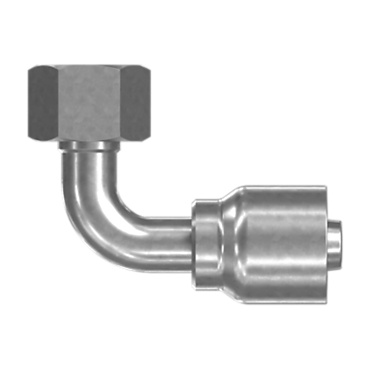

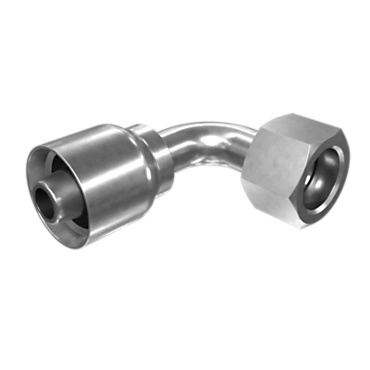

1242303 CATERPILLAR 124-2303: Permanent Coupling | Cat Permanent Coupling BSPP – 90 Degree Spherical Female Swivel

Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -8 BSPP SPHERICAL FEMALE SWIVEL
Drop Length (mm): 38
Drop Length (in): 1.5
Length (mm): 64
Cut-Off Factor (mm): 39
Cut-Off Factor (in): 1.54
Recommended Hose Size (mm): 12.7
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, SAE 100R19, SAE J1402, COOLANT HOSE
Hex Size (mm): 27
Seal Type: NBR 6V-0407
Description: Permanent Coupling 8MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
