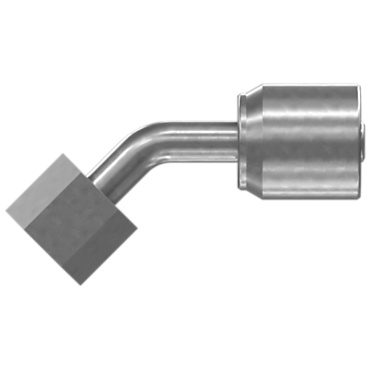

1242297 CATERPILLAR 124-2297: Permanent Coupling | Cat Permanent Coupling BSPP – 45 Degree Spherical Female Swivel

Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 45 Deg
Connector Type: -6 BSPP SPHERICAL FEMALE SWIVEL
Drop Length (mm): 20
Drop Length (in): 0.79
Length (mm): 71
Cut-Off Factor (mm): 45
Cut-Off Factor (in): 1.77
Recommended Hose Size (mm): 9.5
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, SAE J1402, COOLANT HOSE
Hex Size (mm): 22.23
Seal Type: NBR 600-9412, FKM 461-9289
Description: Permanent Coupling 6MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
