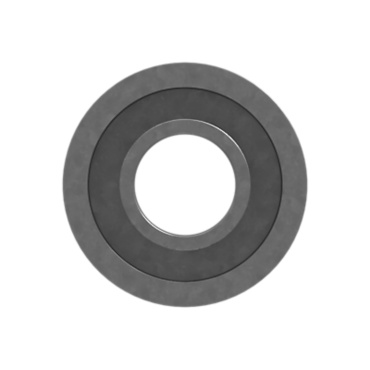

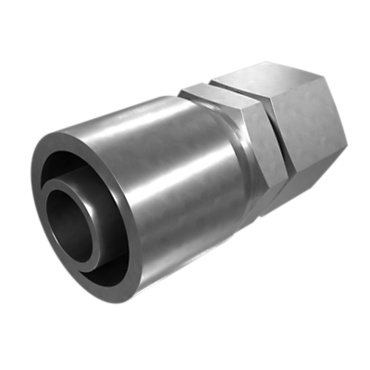

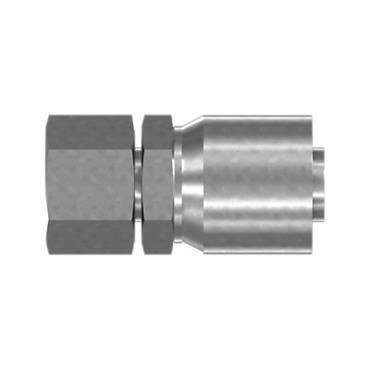

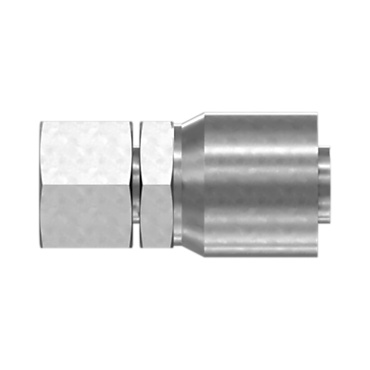

1242294 CATERPILLAR 124-2294: Permanent Coupling | Cat Permanent Coupling BSPP – Straight Spherical Female Swivel

Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: -12 BSPP SPHERICAL FEMALE SWIVEL
Length (mm): 70
Cut-Off Factor (mm): 35
Cut-Off Factor (in): 1.38
Recommended Hose Size (mm): 19.1
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5, SAE 100R16, SAE 100R19, COOLANT HOSE
Hex Size (mm): 31.75
Seal Type: NBR 6V-0408
Description: Permanent Coupling 12MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
