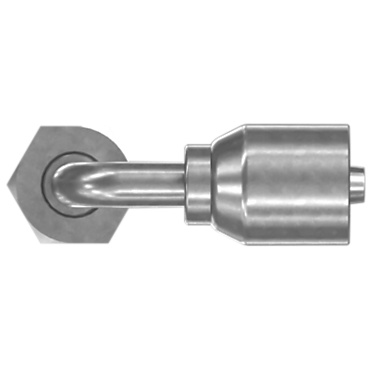

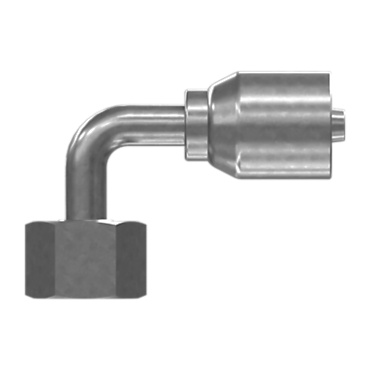

- Caterpillar 1242277 124-2277: Permanent Coupling | Cat Permanent Coupling DIN – 90 Degree Female Swivel
1242277 CATERPILLAR 124-2277: Permanent Coupling | Cat Permanent Coupling DIN – 90 Degree Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242277 |
| Name | 124-2277: Permanent Coupling | Cat Permanent Coupling DIN – 90 Degree Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: DIN FEMALE SWIVEL
Thread Size (dia x pitch) (mm): M20 X 1.5
Drop Length (mm): 38
Drop Length (in): 1.5
Length (mm): 59
Cut-Off Factor (mm): 30
Cut-Off Factor (in): 1.18
Recommended Hose Size (mm): 7.94
Compatible With: SAE 100R16
Hex Size (mm): 23.8
Seal Type: NBR 3E-4297
Description: Permanent Coupling 5MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: DIN FEMALE SWIVEL
Thread Size (dia x pitch) (mm): M20 X 1.5
Drop Length (mm): 38
Drop Length (in): 1.5
Length (mm): 59
Cut-Off Factor (mm): 30
Cut-Off Factor (in): 1.18
Recommended Hose Size (mm): 7.94
Compatible With: SAE 100R16
Hex Size (mm): 23.8
Seal Type: NBR 3E-4297
Description: Permanent Coupling 5MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
