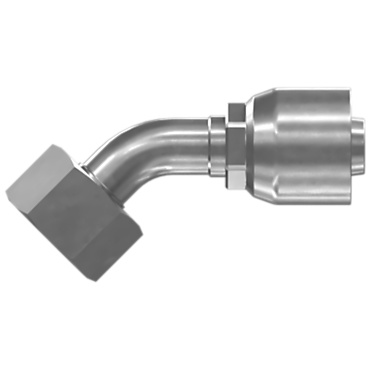

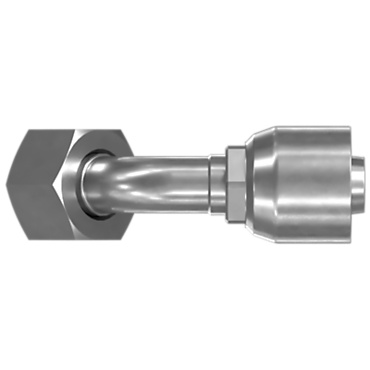

1242271 CATERPILLAR 124-2271: Permanent Coupling | Cat Permanent Coupling DIN – 45 Degree Female Swivel

Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 45 Deg
Connector Type: DIN FEMALE SWIVEL
Thread Size (dia x pitch) (mm): M30 X 2
Drop Length (mm): 28
Drop Length (in): 1.1
Length (mm): 101
Cut-Off Factor (mm): 65
Cut-Off Factor (in): 2.56
Recommended Hose Size (mm): 19.05
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5, SAE 100R16, SAE 100R19, COOLANT HOSE
Hex Size (mm): 36
Seal Type: NBR 3E-4299
Description: Permanent Coupling 12MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
