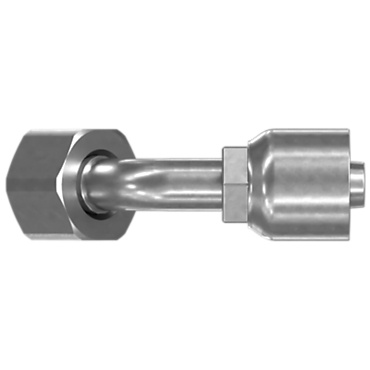

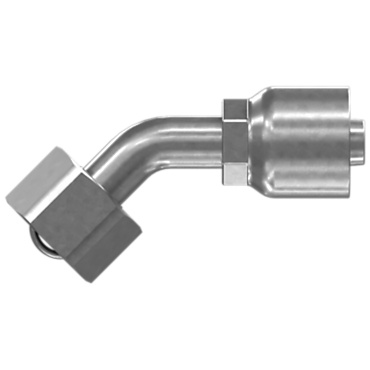

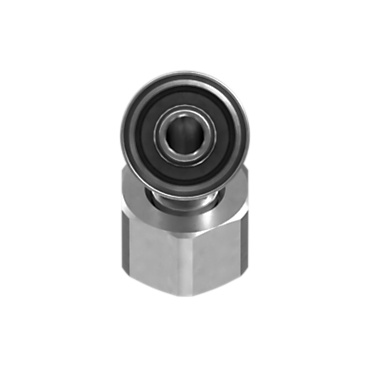

1242269 CATERPILLAR 124-2269: Permanent Coupling | Cat Permanent Coupling DIN – 45 Degree Female Swivel

Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 45 Deg
Connector Type: DIN FEMALE SWIVEL
Thread Size (dia x pitch) (mm): M24 X 1.5
Drop Length (mm): 25
Drop Length (in): 0.98
Length (mm): 84
Cut-Off Factor (mm): 54
Cut-Off Factor (in): 2.13
Recommended Hose Size (mm): 12.7
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, SAE 100R19, SAE J1402, COOLANT HOSE
Hex Size (mm): 31.75
Seal Type: NBR 6T-6408
Description: Permanent Coupling 8MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
