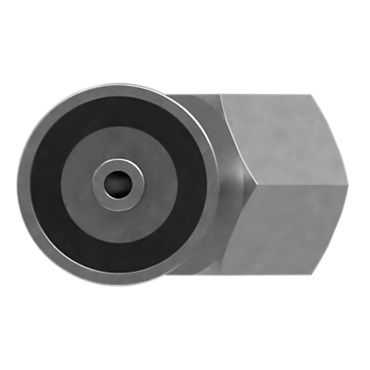

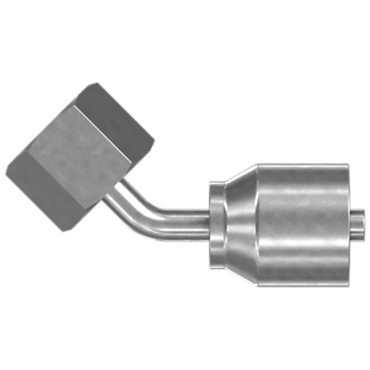

1242265 CATERPILLAR 124-2265: Permanent Coupling | Cat Permanent Coupling DIN – 45 Degree Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242265 |
| Name | 124-2265: Permanent Coupling | Cat Permanent Coupling DIN – 45 Degree Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 45 Deg
Connector Type: DIN FEMALE SWIVEL
Thread Size (dia x pitch) (mm): M18 X 1.5
Drop Length (mm): 18
Drop Length (in): 0.71
Length (mm): 62
Cut-Off Factor (mm): 38
Cut-Off Factor (in): 1.5
Recommended Hose Size (mm): 6.35
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, COOLANT HOSE
Hex Size (mm): 22
Seal Type: NBR 3E-4296
Description: Permanent Coupling 4MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 45 Deg
Connector Type: DIN FEMALE SWIVEL
Thread Size (dia x pitch) (mm): M18 X 1.5
Drop Length (mm): 18
Drop Length (in): 0.71
Length (mm): 62
Cut-Off Factor (mm): 38
Cut-Off Factor (in): 1.5
Recommended Hose Size (mm): 6.35
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, COOLANT HOSE
Hex Size (mm): 22
Seal Type: NBR 3E-4296
Description: Permanent Coupling 4MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
