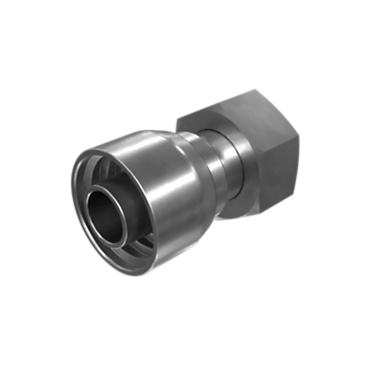

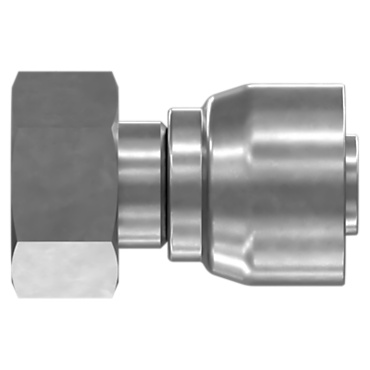

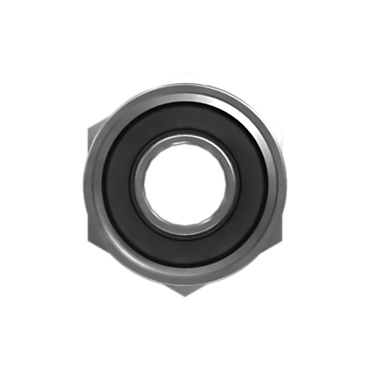

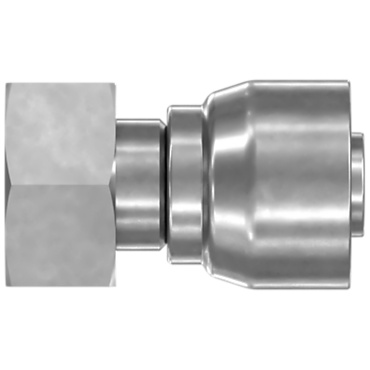

1242263 CATERPILLAR 124-2263: Permanent Coupling | Cat Permanent Coupling DIN – Straight Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242263 |
| Name | 124-2263: Permanent Coupling | Cat Permanent Coupling DIN – Straight Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: DIN FEMALE SWIVEL
Thread Size (dia x pitch) (mm): M52 X 2
Length (mm): 95
Cut-Off Factor (mm): 54
Cut-Off Factor (in): 2.13
Recommended Hose Size (mm): 31.8
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5
Hex Size (mm): 60
Seal Type: NBR 3E-6764
Description: Permanent Coupling 20MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: DIN FEMALE SWIVEL
Thread Size (dia x pitch) (mm): M52 X 2
Length (mm): 95
Cut-Off Factor (mm): 54
Cut-Off Factor (in): 2.13
Recommended Hose Size (mm): 31.8
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5
Hex Size (mm): 60
Seal Type: NBR 3E-6764
Description: Permanent Coupling 20MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
