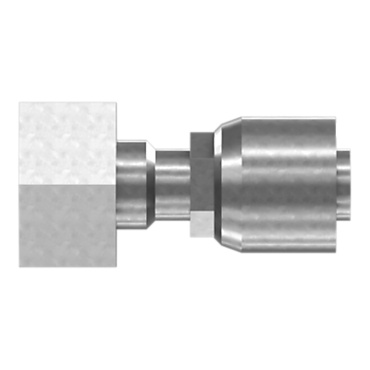

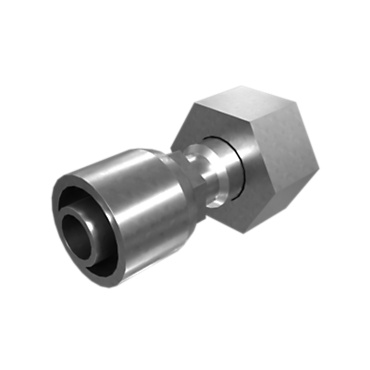

1242261 CATERPILLAR 124-2261: Permanent Coupling | Cat Permanent Coupling DIN – Straight Female Swivel

Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: DIN FEMALE SWIVEL
Thread Size (dia x pitch) (mm): M36 X 2
Length (mm): 79
Cut-Off Factor (mm): 47
Cut-Off Factor (in): 1.85
Recommended Hose Size (mm): 19.1
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5, SAE 100R16, SAE 100R19, COOLANT HOSE
Hex Size (mm): 46.02
Seal Type: NBR 3E-6762
Description: Permanent Coupling 12MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
