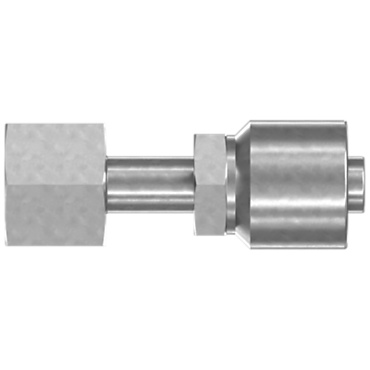

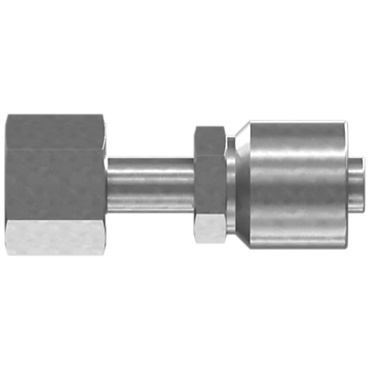

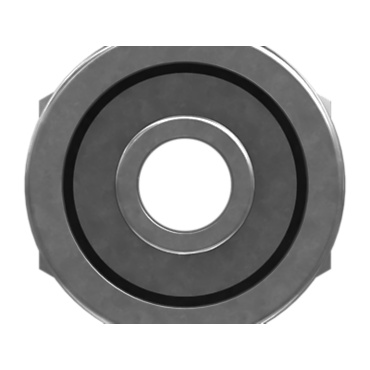

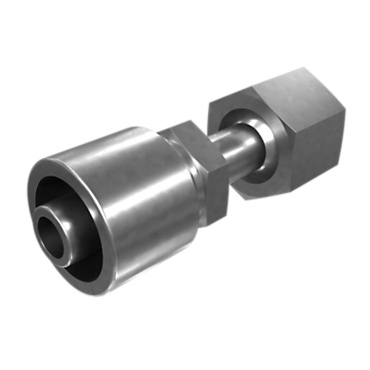

1242258 CATERPILLAR 124-2258: Permanent Coupling | Cat Permanent Coupling DIN – Straight Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242258 |
| Name | 124-2258: Permanent Coupling | Cat Permanent Coupling DIN – Straight Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: DIN FEMALE SWIVEL
Thread Size (dia x pitch) (mm): M20 X 1.5
Length (mm): 68
Cut-Off Factor (mm): 42
Cut-Off Factor (in): 1.65
Recommended Hose Size (mm): 12.7
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, SAE 100R19, SAE J1402, COOLANT HOSE
Hex Size (mm): 27
Seal Type: NBR 3E-4298
Description: Permanent Coupling 8MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: DIN FEMALE SWIVEL
Thread Size (dia x pitch) (mm): M20 X 1.5
Length (mm): 68
Cut-Off Factor (mm): 42
Cut-Off Factor (in): 1.65
Recommended Hose Size (mm): 12.7
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, SAE 100R19, SAE J1402, COOLANT HOSE
Hex Size (mm): 27
Seal Type: NBR 3E-4298
Description: Permanent Coupling 8MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
