- Caterpillar 1242257 124-2257: Permanent Coupling | Cat Permanent Coupling DIN – Straight Female Swivel

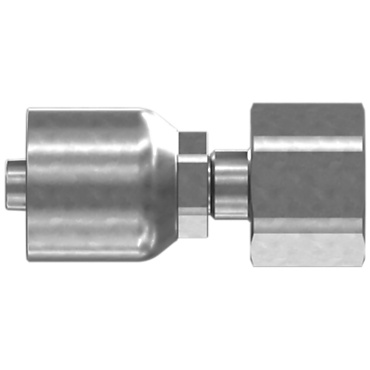

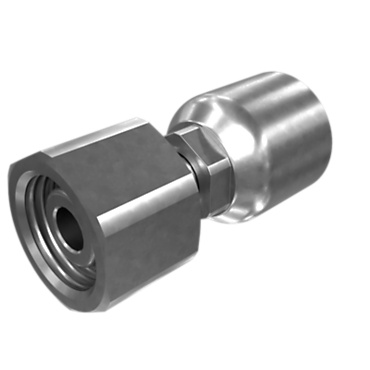

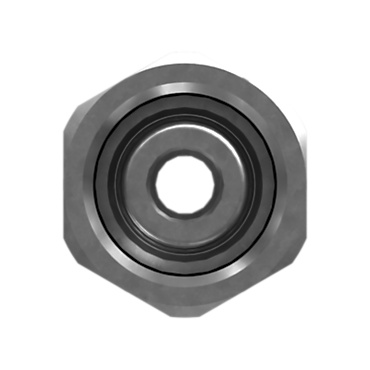

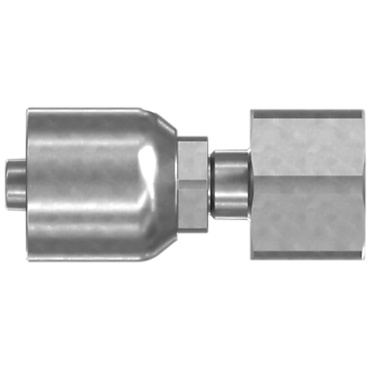

1242257 CATERPILLAR 124-2257: Permanent Coupling | Cat Permanent Coupling DIN – Straight Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242257 |
| Name | 124-2257: Permanent Coupling | Cat Permanent Coupling DIN – Straight Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: DIN FEMALE SWIVEL
Thread Size (dia x pitch) (mm): M20 X 1.5
Length (mm): 57
Cut-Off Factor (mm): 32
Cut-Off Factor (in): 1.26
Recommended Hose Size (mm): 9.52
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, SAE J1402, COOLANT HOSE
Hex Size (mm): 27
Seal Type: NBR 7T-0508
Description: Permanent Coupling 6MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: DIN FEMALE SWIVEL
Thread Size (dia x pitch) (mm): M20 X 1.5
Length (mm): 57
Cut-Off Factor (mm): 32
Cut-Off Factor (in): 1.26
Recommended Hose Size (mm): 9.52
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, SAE J1402, COOLANT HOSE
Hex Size (mm): 27
Seal Type: NBR 7T-0508
Description: Permanent Coupling 6MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
