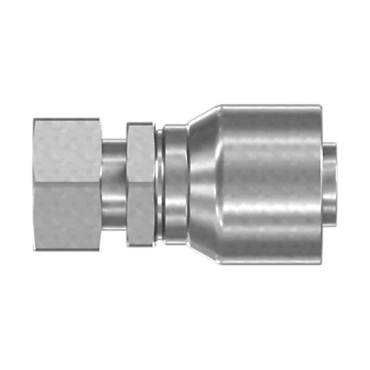

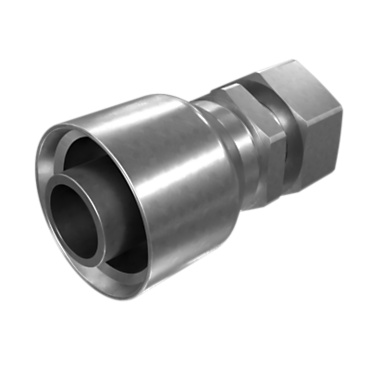

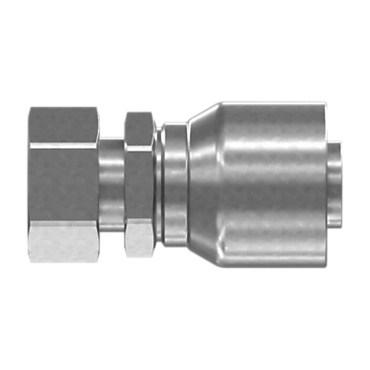

1242240 CATERPILLAR 124-2240: Permanent Coupling | Cat Permanent Coupling DIN – Straight Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242240 |
| Name | 124-2240: Permanent Coupling | Cat Permanent Coupling DIN – Straight Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: DIN FEMALE SWIVEL
Thread Size (dia x pitch) (mm): M36 X 2
Length (mm): 79
Cut-Off Factor (mm): 48
Cut-Off Factor (in): 1.89
Recommended Hose Size (mm): 25.4
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5, SAE 100R16, COOLANT HOSE
Hex Size (mm): 40.9
Seal Type: NBR 092-2304
Description: Permanent Coupling 16MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: DIN FEMALE SWIVEL
Thread Size (dia x pitch) (mm): M36 X 2
Length (mm): 79
Cut-Off Factor (mm): 48
Cut-Off Factor (in): 1.89
Recommended Hose Size (mm): 25.4
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5, SAE 100R16, COOLANT HOSE
Hex Size (mm): 40.9
Seal Type: NBR 092-2304
Description: Permanent Coupling 16MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
