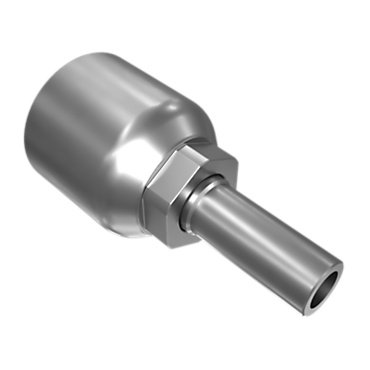

1242238 CATERPILLAR 124-2238: Permanent Coupling | Cat Permanent Coupling DIN – Straight Female Swivel

Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: DIN FEMALE SWIVEL
Thread Size (dia x pitch) (mm): M26 X 1.5
Length (mm): 78
Cut-Off Factor (mm): 43
Cut-Off Factor (in): 1.69
Recommended Hose Size (mm): 19.1
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5, SAE 100R16, SAE 100R19, COOLANT HOSE
Hex Size (mm): 31.8
Seal Type: NBR 7T-0506
Description: Permanent Coupling 12MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
