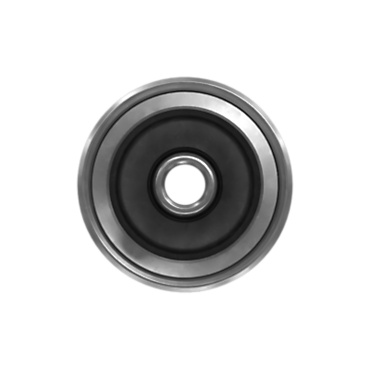

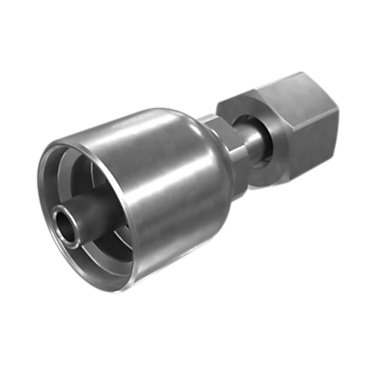

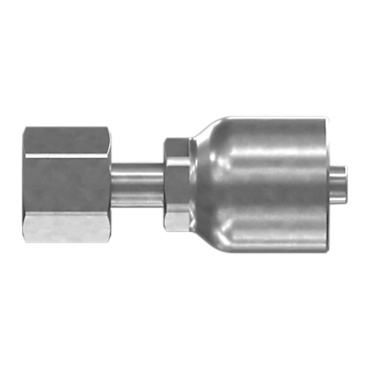

- Caterpillar 1242232 124-2232: Permanent Coupling | Cat Permanent Coupling DIN – Straight Female Swivel
1242232 CATERPILLAR 124-2232: Permanent Coupling | Cat Permanent Coupling DIN – Straight Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242232 |
| Name | 124-2232: Permanent Coupling | Cat Permanent Coupling DIN – Straight Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: DIN FEMALE SWIVEL
Thread Size (dia x pitch) (mm): M14 X 1.5
Length (mm): 49
Cut-Off Factor (mm): 28
Cut-Off Factor (in): 1.1
Recommended Hose Size (mm): 6.35
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, COOLANT HOSE
Hex Size (mm): 16.9
Seal Type: NBR 3E-4289
Description: Permanent Coupling 4MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: DIN FEMALE SWIVEL
Thread Size (dia x pitch) (mm): M14 X 1.5
Length (mm): 49
Cut-Off Factor (mm): 28
Cut-Off Factor (in): 1.1
Recommended Hose Size (mm): 6.35
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, COOLANT HOSE
Hex Size (mm): 16.9
Seal Type: NBR 3E-4289
Description: Permanent Coupling 4MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
