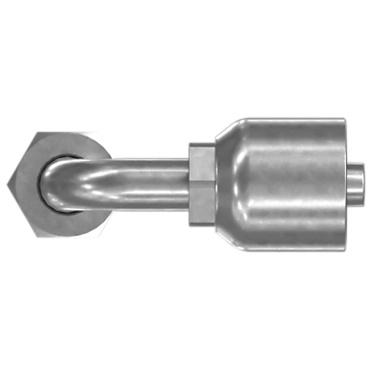

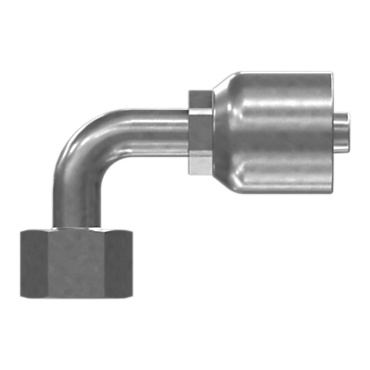

1242224 CATERPILLAR 124-2224: 90° Swivel Crimp Elbow Coupling | Cat® 90° Swivel Crimp Elbow Coupling Used for Fluid Carrying
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242224 |
| Name | 124-2224: 90° Swivel Crimp Elbow Coupling | Cat® 90° Swivel Crimp Elbow Coupling Used for Fluid Carrying |
Drop Length (in): 1.44
Connector: Permanent
Material: STEEL
Drop Length (mm): 36.6
Connector Type: -DIN M18 LIGHT SERIES WITHOUT O-RING
Hex Size (mm): 22
Shape: 90°
Thread Size (dia x pitch) (mm): M18X1.5
Thread: M18 X 1.5
Length (mm): 61.7
Cut-Off Factor (mm): 32.7
Cut-Off Factor (in): 1.29
Recommended Hose Size (mm): 9.52
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, SAE J1402, COOLANT HOSE
Description: Permanent Coupling 6MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Connector: Permanent
Material: STEEL
Drop Length (mm): 36.6
Connector Type: -DIN M18 LIGHT SERIES WITHOUT O-RING
Hex Size (mm): 22
Shape: 90°
Thread Size (dia x pitch) (mm): M18X1.5
Thread: M18 X 1.5
Length (mm): 61.7
Cut-Off Factor (mm): 32.7
Cut-Off Factor (in): 1.29
Recommended Hose Size (mm): 9.52
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, SAE J1402, COOLANT HOSE
Description: Permanent Coupling 6MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
