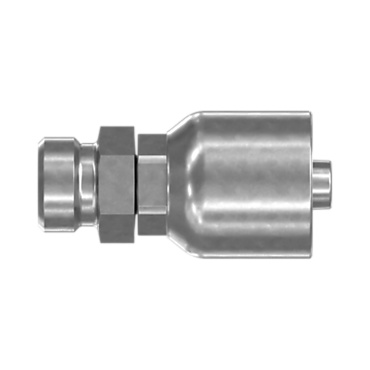

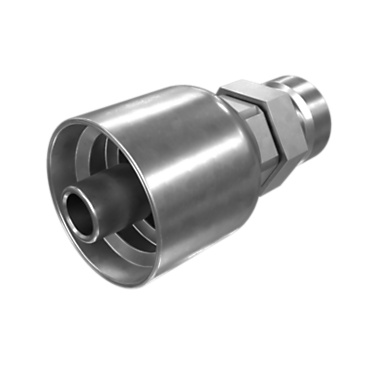

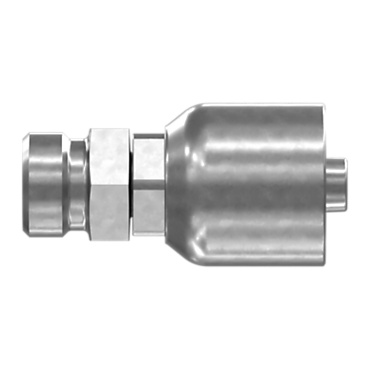

- Caterpillar 1242181 124-2181: 19mm Hex Size Permanent Coupling | Cat® Permanent Coupling For Check Valve Kit
1242181 CATERPILLAR 124-2181: 19mm Hex Size Permanent Coupling | Cat® Permanent Coupling For Check Valve Kit
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242181 |
| Name | 124-2181: 19mm Hex Size Permanent Coupling | Cat® Permanent Coupling For Check Valve Kit |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: DIN MALE
Thread Size (dia x pitch) (mm): M18 X 1.5
Length (mm): 51
Cut-Off Factor (mm): 26
Cut-Off Factor (in): 1.02
Recommended Hose Size (mm): 9.52
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, SAE J1402, COOLANT HOSE
Hex Size (mm): 19
Description: Permanent Coupling 6MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: DIN MALE
Thread Size (dia x pitch) (mm): M18 X 1.5
Length (mm): 51
Cut-Off Factor (mm): 26
Cut-Off Factor (in): 1.02
Recommended Hose Size (mm): 9.52
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, SAE J1402, COOLANT HOSE
Hex Size (mm): 19
Description: Permanent Coupling 6MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
