- Caterpillar 1242171 124-2171: Permanent Coupling | Cat Permanent Coupling JIC – 90 Degree Female Swivel

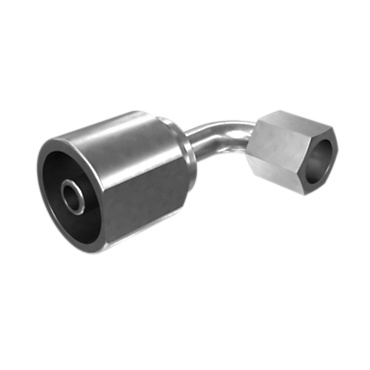

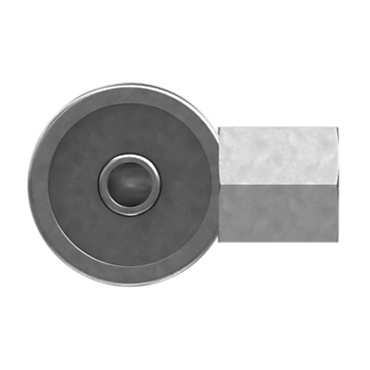

1242171 CATERPILLAR 124-2171: Permanent Coupling | Cat Permanent Coupling JIC – 90 Degree Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242171 |
| Name | 124-2171: Permanent Coupling | Cat Permanent Coupling JIC – 90 Degree Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -6 JIC FEMALE SWIVEL
Drop Length (mm): 22
Drop Length (in): 0.87
Length (mm): 60
Cut-Off Factor (mm): 34
Cut-Off Factor (in): 1.34
Recommended Hose Size (mm): 12.7
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, SAE J1402, COOLANT HOSE, SAE 100R19
Hex Size (mm): 17.48
Description: Permanent Coupling 8MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -6 JIC FEMALE SWIVEL
Drop Length (mm): 22
Drop Length (in): 0.87
Length (mm): 60
Cut-Off Factor (mm): 34
Cut-Off Factor (in): 1.34
Recommended Hose Size (mm): 12.7
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, SAE J1402, COOLANT HOSE, SAE 100R19
Hex Size (mm): 17.48
Description: Permanent Coupling 8MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
