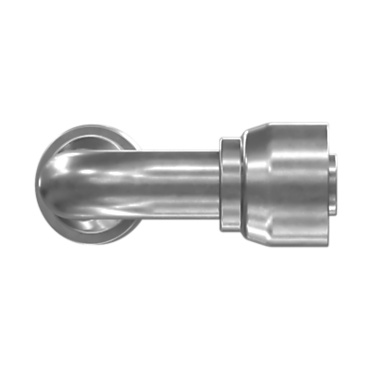

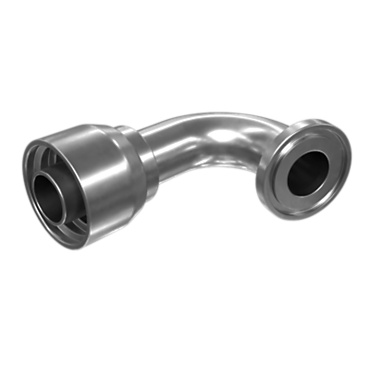

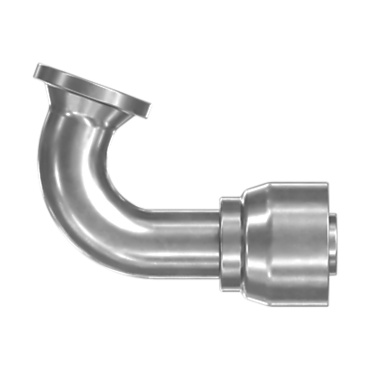

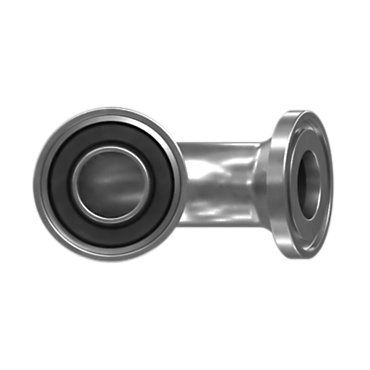

1242170 CATERPILLAR 124-2170: Permanent Coupling | Cat Permanent Coupling - 110 Degree Code 61
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242170 |
| Name | 124-2170: Permanent Coupling | Cat Permanent Coupling - 110 Degree Code 61 |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 110 Deg
Connector Type: -24 CODE 61 FLANGE
Drop Length (mm): 80
Drop Length (in): 3.15
Length (mm): 120
Cut-Off Factor (mm): 75
Cut-Off Factor (in): 2.95
Recommended Hose Size (mm): 31.8
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5
Seal Type: NBR 4J-0524, FKM 234-3544
Description: Permanent Coupling 20MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 110 Deg
Connector Type: -24 CODE 61 FLANGE
Drop Length (mm): 80
Drop Length (in): 3.15
Length (mm): 120
Cut-Off Factor (mm): 75
Cut-Off Factor (in): 2.95
Recommended Hose Size (mm): 31.8
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5
Seal Type: NBR 4J-0524, FKM 234-3544
Description: Permanent Coupling 20MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
