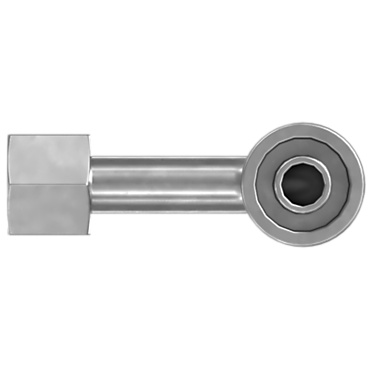

- Caterpillar 1242164 124-2164: Permanent Coupling | Cat Permanent Coupling ORFS – 90 Degree Female Swivel
1242164 CATERPILLAR 124-2164: Permanent Coupling | Cat Permanent Coupling ORFS – 90 Degree Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242164 |
| Name | 124-2164: Permanent Coupling | Cat Permanent Coupling ORFS – 90 Degree Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -10 ORFS FEMALE SWIVEL
Drop Length (mm): 70
Drop Length (in): 2.76
Length (mm): 77
Cut-Off Factor (mm): 47
Cut-Off Factor (in): 1.85
Recommended Hose Size (mm): 15.8
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, COOLANT HOSE
Hex Size (mm): 28.6
Seal Type: NBR 7J-9108, FKM 228-7091
Description: Permanent Coupling 10MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -10 ORFS FEMALE SWIVEL
Drop Length (mm): 70
Drop Length (in): 2.76
Length (mm): 77
Cut-Off Factor (mm): 47
Cut-Off Factor (in): 1.85
Recommended Hose Size (mm): 15.8
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, COOLANT HOSE
Hex Size (mm): 28.6
Seal Type: NBR 7J-9108, FKM 228-7091
Description: Permanent Coupling 10MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
