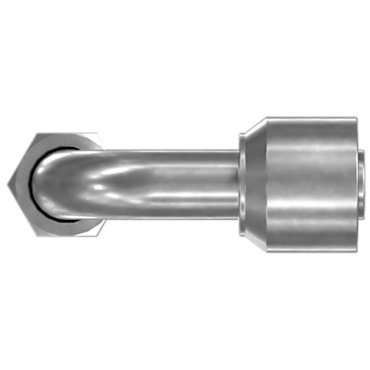

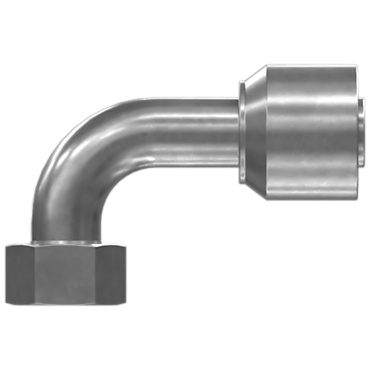

1242157 CATERPILLAR 124-2157: Permanent Coupling | Cat Permanent Coupling ORFS – 90 Degree Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242157 |
| Name | 124-2157: Permanent Coupling | Cat Permanent Coupling ORFS – 90 Degree Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -20 ORFS FEMALE SWIVEL
Drop Length (mm): 64
Drop Length (in): 2.52
Length (mm): 131
Cut-Off Factor (mm): 85
Cut-Off Factor (in): 3.35
Recommended Hose Size (mm): 31.8
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5
Hex Size (mm): 47.6
Seal Type: NBR 6V-8400, FKM 228-7094
Description: Permanent Coupling 20MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -20 ORFS FEMALE SWIVEL
Drop Length (mm): 64
Drop Length (in): 2.52
Length (mm): 131
Cut-Off Factor (mm): 85
Cut-Off Factor (in): 3.35
Recommended Hose Size (mm): 31.8
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5
Hex Size (mm): 47.6
Seal Type: NBR 6V-8400, FKM 228-7094
Description: Permanent Coupling 20MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
