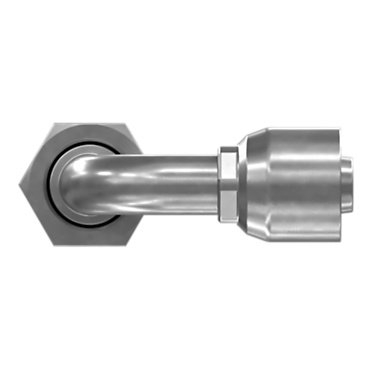

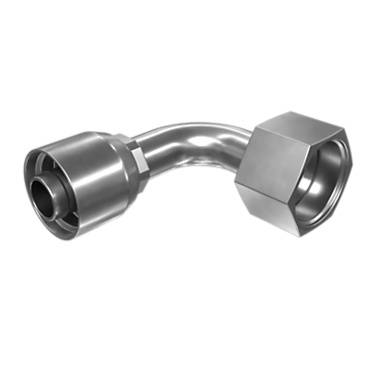

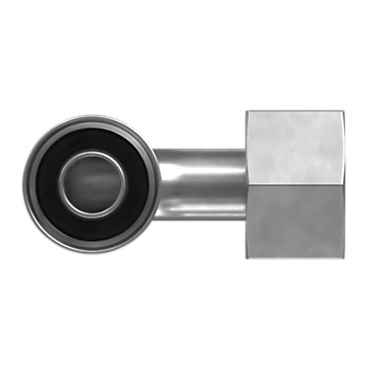

1242154 CATERPILLAR 124-2154: Permanent Coupling | Cat Permanent Coupling ORFS – 90 Degree Female Swivel

Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -16 ORFS FEMALE SWIVEL
Drop Length (mm): 56
Drop Length (in): 2.2
Length (mm): 88
Cut-Off Factor (mm): 53
Cut-Off Factor (in): 2.09
Recommended Hose Size (mm): 19.05
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, COOLANT HOSE, SAE 100R19, SAE 100R4
Hex Size (mm): 41.3
Seal Type: NBR 5k-9090, FKM 228-7093
Description: Permanent Coupling 12MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
