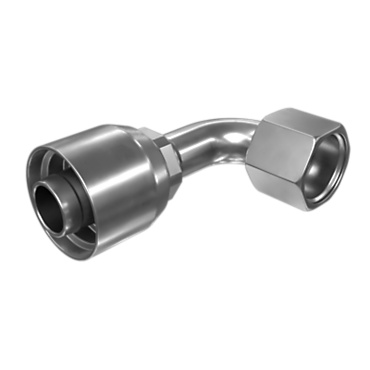

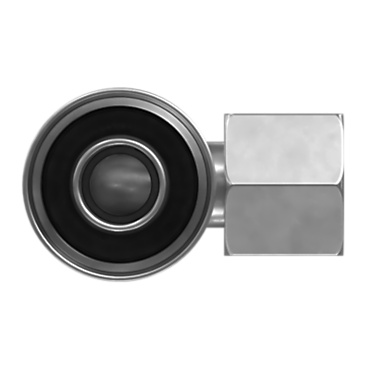

1242152 CATERPILLAR 124-2152: Permanent Coupling | Cat Permanent Coupling ORFS – 90 Degree Female Swivel

Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -10 ORFS FEMALE SWIVEL
Drop Length (mm): 32
Drop Length (in): 1.26
Length (mm): 84
Cut-Off Factor (mm): 49
Cut-Off Factor (in): 1.93
Recommended Hose Size (mm): 19.05
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, COOLANT HOSE, SAE 100R19, SAE 100R4
Hex Size (mm): 28.58
Seal Type: NBR 7J-9108, FKM 228-7091
Description: Permanent Coupling 12MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
