- Caterpillar 1242151 124-2151: Permanent Coupling | Cat Permanent Coupling ORFS – 90 Degree Female Swivel

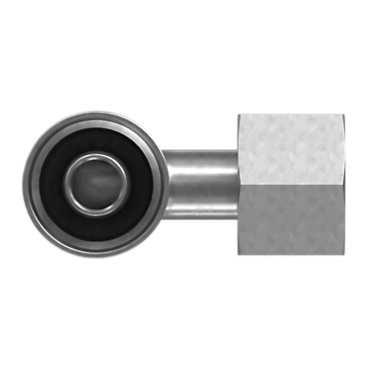

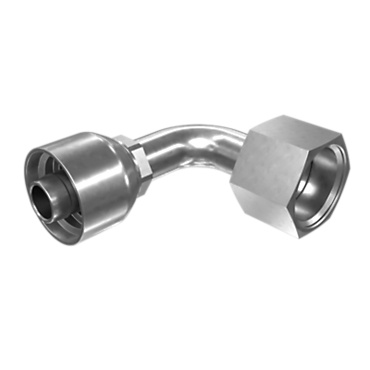

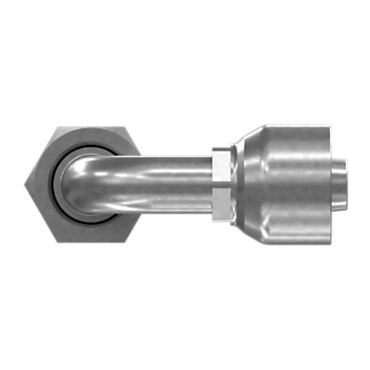

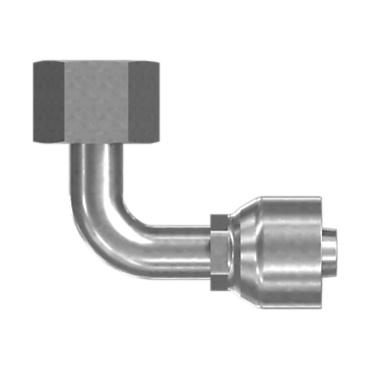

1242151 CATERPILLAR 124-2151: Permanent Coupling | Cat Permanent Coupling ORFS – 90 Degree Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242151 |
| Name | 124-2151: Permanent Coupling | Cat Permanent Coupling ORFS – 90 Degree Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -12 ORFS FEMALE SWIVEL
Drop Length (mm): 48
Drop Length (in): 1.89
Length (mm): 77
Cut-Off Factor (mm): 49
Cut-Off Factor (in): 1.93
Recommended Hose Size (mm): 15.8
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, COOLANT HOSE
Hex Size (mm): 34.92
Seal Type: NBR 6V-9746, FKM 228-7092
Description: Permanent Coupling 10MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -12 ORFS FEMALE SWIVEL
Drop Length (mm): 48
Drop Length (in): 1.89
Length (mm): 77
Cut-Off Factor (mm): 49
Cut-Off Factor (in): 1.93
Recommended Hose Size (mm): 15.8
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, COOLANT HOSE
Hex Size (mm): 34.92
Seal Type: NBR 6V-9746, FKM 228-7092
Description: Permanent Coupling 10MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
