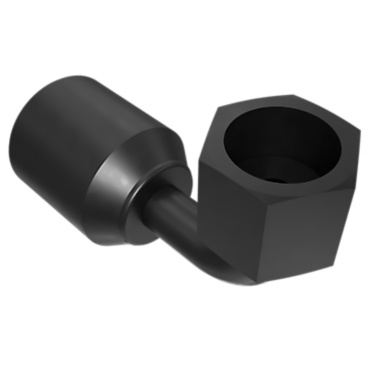

1242144 CATERPILLAR 124-2144: Permanent Coupling | Cat Permanent Coupling ORFS – 90 Degree Female Swivel

Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -6 ORFS FEMALE SWIVEL
Drop Length (mm): 23
Drop Length (in): 0.91
Length (mm): 62
Cut-Off Factor (mm): 33
Cut-Off Factor (in): 1.3
Recommended Hose Size (mm): 9.5
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, SAE J1402, COOLANT HOSE
Hex Size (mm): 20.6
Seal Type: NBR 6V-8397, FKM 228-7089
Description: Permanent Coupling 6MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
