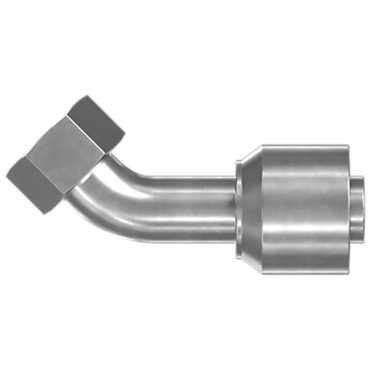

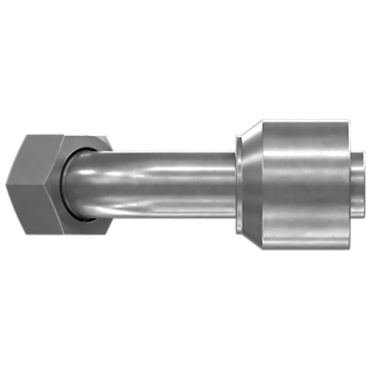

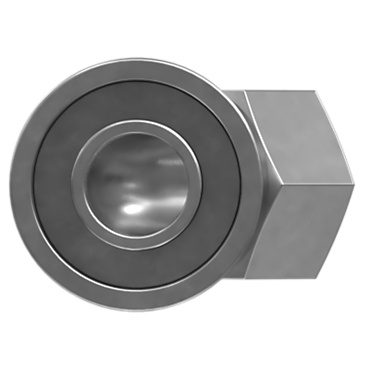

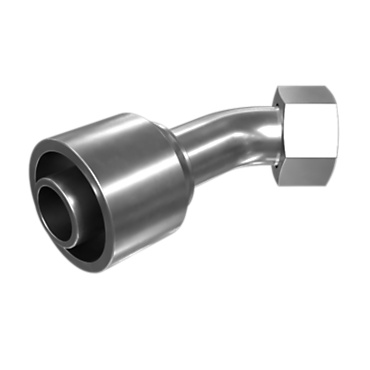

- Caterpillar 1242139 124-2139: Permanent Coupling | Cat Permanent Coupling ORFS – 45 Degree Female Swivel
1242139 CATERPILLAR 124-2139: Permanent Coupling | Cat Permanent Coupling ORFS – 45 Degree Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242139 |
| Name | 124-2139: Permanent Coupling | Cat Permanent Coupling ORFS – 45 Degree Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 45 Deg
Connector Type: -20 ORFS FEMALE SWIVEL
Drop Length (mm): 25
Drop Length (in): 0.98
Length (mm): 132
Cut-Off Factor (mm): 87
Cut-Off Factor (in): 3.43
Recommended Hose Size (mm): 31.75
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5
Hex Size (mm): 47.6
Seal Type: NBR 6V-8400, FKM 228-7094
Description: Permanent Coupling 20MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 45 Deg
Connector Type: -20 ORFS FEMALE SWIVEL
Drop Length (mm): 25
Drop Length (in): 0.98
Length (mm): 132
Cut-Off Factor (mm): 87
Cut-Off Factor (in): 3.43
Recommended Hose Size (mm): 31.75
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5
Hex Size (mm): 47.6
Seal Type: NBR 6V-8400, FKM 228-7094
Description: Permanent Coupling 20MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
