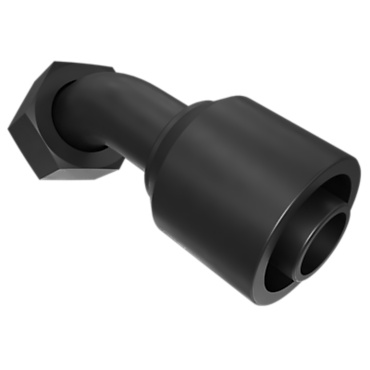

1242138 CATERPILLAR 124-2138: Permanent Coupling | Cat Permanent Coupling ORFS – 45 Degree Female Swivel

Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 45 Deg
Connector Type: -16 ORFS FEMALE SWIVEL
Drop Length (mm): 24
Drop Length (in): 0.94
Length (mm): 115
Cut-Off Factor (mm): 73
Cut-Off Factor (in): 2.87
Recommended Hose Size (mm): 25.4
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, COOLANT HOSE, SAE 100R4
Hex Size (mm): 41.3
Seal Type: NBR 5K-9090, FKM 228-7093
Description: Permanent Coupling 16MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
