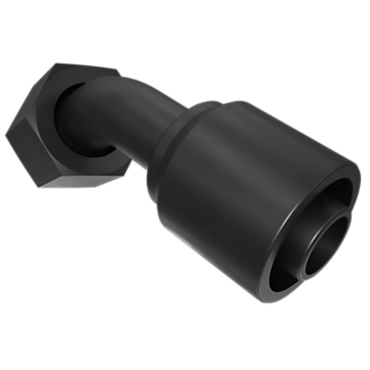

1242137 CATERPILLAR 124-2137: Permanent Coupling | Cat Permanent Coupling ORFS – 45 Degree Female Swivel

Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 45 Deg
Connector Type: -12 ORFS FEMALE SWIVEL
Drop Length (mm): 21
Drop Length (in): 0.83
Length (mm): 94
Cut-Off Factor (mm): 59
Cut-Off Factor (in): 2.32
Recommended Hose Size (mm): 19.1
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, COLANT HOSE, SAE 100R19, SAE 100R4
Hex Size (mm): 34.92
Seal Type: NBR 6V-9746, FKM 228-7092
Description: Permanent Coupling 12MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
