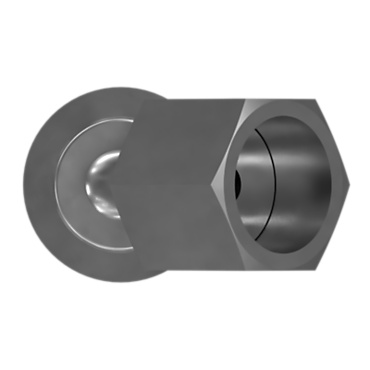

1242131 CATERPILLAR 124-2131: Permanent Coupling | Cat Permanent Coupling ORFS – 45 Degree Female Swivel

Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 45 Deg
Connector Type: -8 ORFS FEMALE SWIVEL
Drop Length (mm): 15
Drop Length (in): 0.59
Length (mm): 69
Cut-Off Factor (mm): 40
Cut-Off Factor (in): 1.57
Recommended Hose Size (mm): 9.52
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, SAE J1402, COOLANT HOSE
Hex Size (mm): 23.8
Seal Type: NBR 6V-8398, FKM 228-7090
Description: Permanent Coupling 6MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
