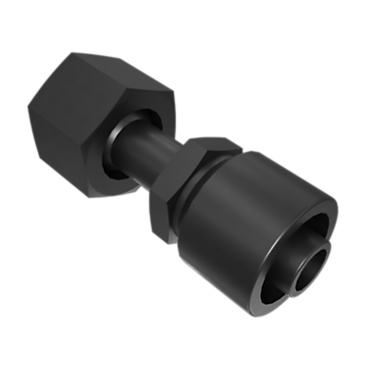

1242120 CATERPILLAR 124-2120: Permanent Coupling | Cat Permanent Coupling ORFS – Straight Female Swivel

Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: -12 ORFS FEMALE SWIVEL
Length (mm): 71
Cut-Off Factor (mm): 46
Cut-Off Factor (in): 1.81
Recommended Hose Size (mm): 15.9
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, COLANT HOSE, SAE 100R19, SAE 100R4
Hex Size (mm): 34.92
Seal Type: NBR 6V-9746, FKM 228-7092
Description: Permanent Coupling 10MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
