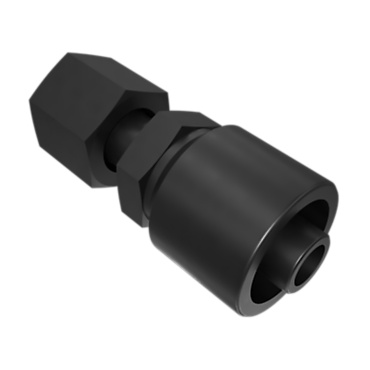

1242117 CATERPILLAR 124-2117: Permanent Coupling | Cat Permanent Coupling ORFS – Straight Female Swivel

Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: -8 ORFS FEMALE SWIVEL
Length (mm): 55
Cut-Off Factor (mm): 30
Cut-Off Factor (in): 1.18
Recommended Hose Size (mm): 12.7
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, SAE J1402, COOLANT HOSE, SAE 100R19
Hex Size (mm): 23.8
Seal Type: NBR 4J-5477, FKM 228-7088
Description: Permanent Coupling 8MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
