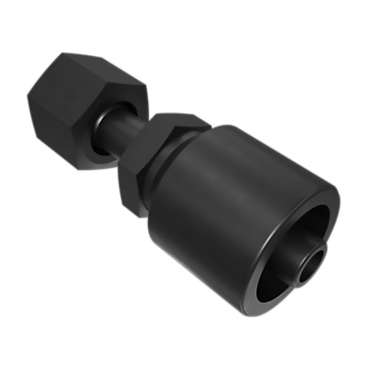

1242114 CATERPILLAR 124-2114: Permanent Coupling | Cat Permanent Coupling ORFS – Straight Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242114 |
| Name | 124-2114: Permanent Coupling | Cat Permanent Coupling ORFS – Straight Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: -6 ORFS FEMALE SWIVEL
Length (mm): 56
Cut-Off Factor (mm): 31
Cut-Off Factor (in): 1.22
Recommended Hose Size (mm): 9.5
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, SAE J1402, COOLANT HOSE
Hex Size (mm): 20.6
Seal Type: NBR 6V-8397, FKM 228-7089
Description: Permanent Coupling 6MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: Straight
Connector Type: -6 ORFS FEMALE SWIVEL
Length (mm): 56
Cut-Off Factor (mm): 31
Cut-Off Factor (in): 1.22
Recommended Hose Size (mm): 9.5
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, SAE J1402, COOLANT HOSE
Hex Size (mm): 20.6
Seal Type: NBR 6V-8397, FKM 228-7089
Description: Permanent Coupling 6MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
