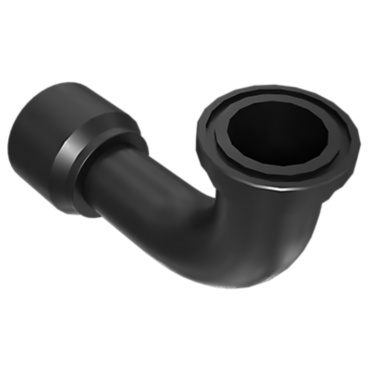

1242109 CATERPILLAR 124-2109: Permanent Coupling | Cat Permanent Coupling - 90 Degree Code 61
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242109 |
| Name | 124-2109: Permanent Coupling | Cat Permanent Coupling - 90 Degree Code 61 |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -32 CODE 61 FLANGE
Drop Length (mm): 114
Drop Length (in): 4.49
Length (mm): 193
Cut-Off Factor (mm): 143
Cut-Off Factor (in): 5.63
Recommended Hose Size (mm): 50.8
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R4
Seal Type: NBR 4J-0527, FKM 291-8222
Description: Permanent Coupling 32MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -32 CODE 61 FLANGE
Drop Length (mm): 114
Drop Length (in): 4.49
Length (mm): 193
Cut-Off Factor (mm): 143
Cut-Off Factor (in): 5.63
Recommended Hose Size (mm): 50.8
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R4
Seal Type: NBR 4J-0527, FKM 291-8222
Description: Permanent Coupling 32MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
