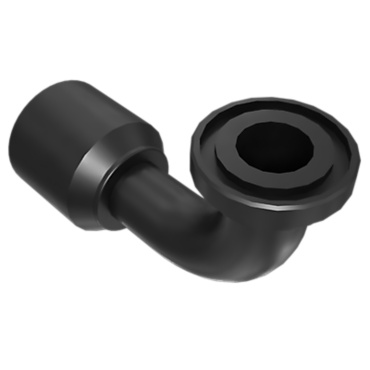

1242103 CATERPILLAR 124-2103: Permanent Coupling | Cat Permanent Coupling - 90 Degree Code 61
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242103 |
| Name | 124-2103: Permanent Coupling | Cat Permanent Coupling - 90 Degree Code 61 |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -16 CODE 61 FLANGE
Drop Length (mm): 60
Drop Length (in): 2.36
Length (mm): 113
Cut-Off Factor (mm): 71
Cut-Off Factor (in): 2.8
Recommended Hose Size (mm): 25.4
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, COOLANT HOSE, SAE 100R4
Seal Type: NBR 4J-0520, FKM 291-8219
Description: Permanent Coupling 16MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -16 CODE 61 FLANGE
Drop Length (mm): 60
Drop Length (in): 2.36
Length (mm): 113
Cut-Off Factor (mm): 71
Cut-Off Factor (in): 2.8
Recommended Hose Size (mm): 25.4
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, COOLANT HOSE, SAE 100R4
Seal Type: NBR 4J-0520, FKM 291-8219
Description: Permanent Coupling 16MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
