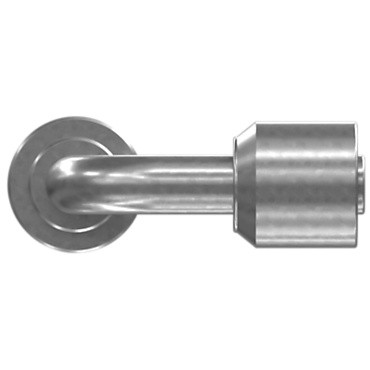

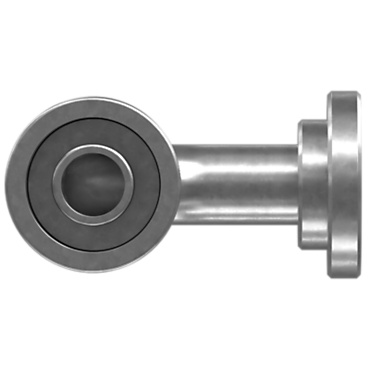

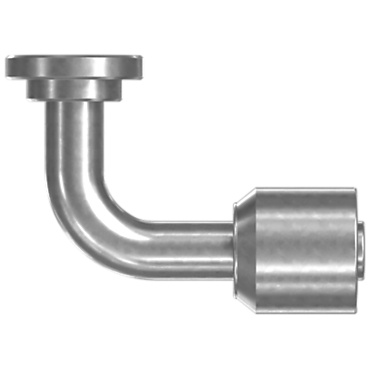

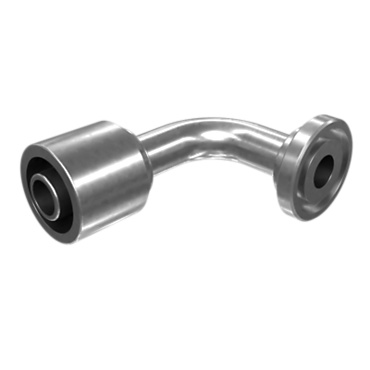

1242100 CATERPILLAR 124-2100: Permanent Coupling | Cat Permanent Coupling - 90 Degree Code 61
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242100 |
| Name | 124-2100: Permanent Coupling | Cat Permanent Coupling - 90 Degree Code 61 |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -12 CODE 61 FLANGE
Drop Length (mm): 54
Drop Length (in): 2.13
Length (mm): 75
Cut-Off Factor (mm): 44
Cut-Off Factor (in): 1.73
Recommended Hose Size (mm): 15.9
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, COOLANT HOSE
Seal Type: NBR 4J-5267, FKM 291-8218
Description: Permanent Coupling 10MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -12 CODE 61 FLANGE
Drop Length (mm): 54
Drop Length (in): 2.13
Length (mm): 75
Cut-Off Factor (mm): 44
Cut-Off Factor (in): 1.73
Recommended Hose Size (mm): 15.9
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, COOLANT HOSE
Seal Type: NBR 4J-5267, FKM 291-8218
Description: Permanent Coupling 10MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
