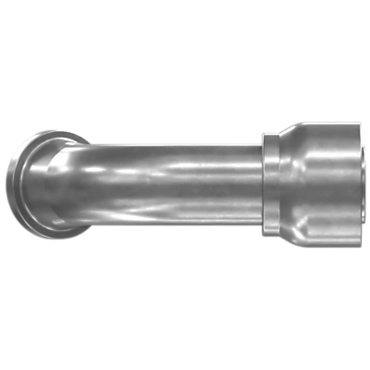

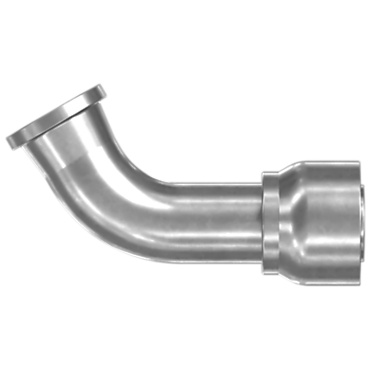

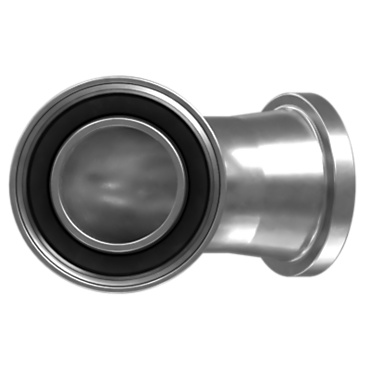

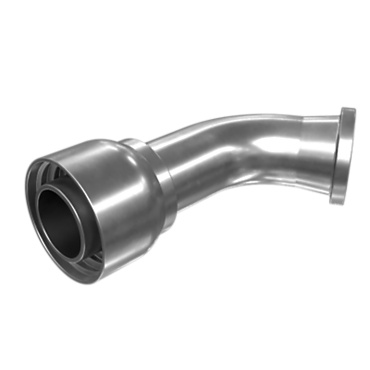

1242090 CATERPILLAR 124-2090: Permanent Coupling | Cat Permanent Coupling - 60 Degree Code 61
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242090 |
| Name | 124-2090: Permanent Coupling | Cat Permanent Coupling - 60 Degree Code 61 |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 60 Deg
Connector Type: -32 CODE 61 FLANGE
Drop Length (mm): 73
Drop Length (in): 2.87
Length (mm): 203
Cut-Off Factor (mm): 153
Cut-Off Factor (in): 6.02
Recommended Hose Size (mm): 50.8
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5
Seal Type: NBR 4J-0527, FKM 291-8222
Description: Permanent Coupling 32MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 60 Deg
Connector Type: -32 CODE 61 FLANGE
Drop Length (mm): 73
Drop Length (in): 2.87
Length (mm): 203
Cut-Off Factor (mm): 153
Cut-Off Factor (in): 6.02
Recommended Hose Size (mm): 50.8
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5
Seal Type: NBR 4J-0527, FKM 291-8222
Description: Permanent Coupling 32MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
