- Caterpillar 1242087 124-2087: Permanent Coupling | Cat Permanent Coupling - 60 Degree Code 61

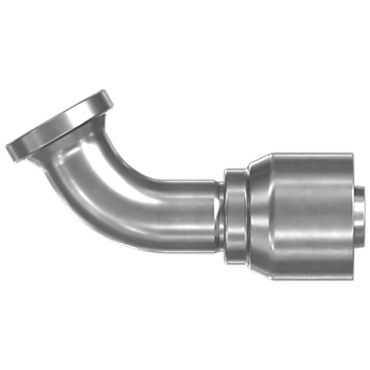

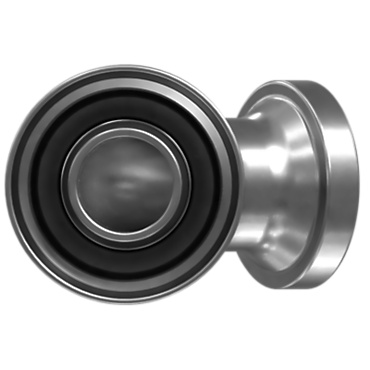

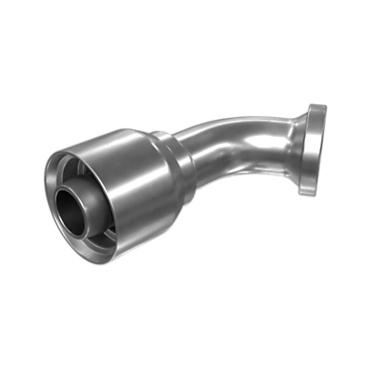

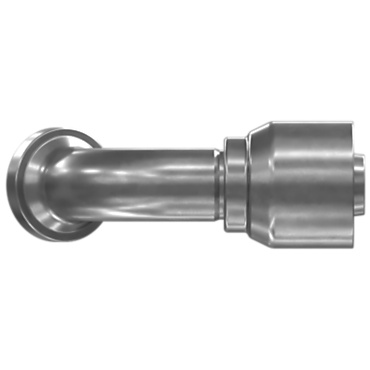

1242087 CATERPILLAR 124-2087: Permanent Coupling | Cat Permanent Coupling - 60 Degree Code 61
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242087 |
| Name | 124-2087: Permanent Coupling | Cat Permanent Coupling - 60 Degree Code 61 |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 60 Deg
Connector Type: -16 CODE 61 FLANGE
Drop Length (mm): 38
Drop Length (in): 1.5
Length (mm): 120
Cut-Off Factor (mm): 77
Cut-Off Factor (in): 3.03
Recommended Hose Size (mm): 25.4
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5, SAE 100R16, COOLANT HOSE
Seal Type: NBR 4J-0520, FKM 291-8219
Description: Permanent Coupling 16MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 60 Deg
Connector Type: -16 CODE 61 FLANGE
Drop Length (mm): 38
Drop Length (in): 1.5
Length (mm): 120
Cut-Off Factor (mm): 77
Cut-Off Factor (in): 3.03
Recommended Hose Size (mm): 25.4
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5, SAE 100R16, COOLANT HOSE
Seal Type: NBR 4J-0520, FKM 291-8219
Description: Permanent Coupling 16MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
