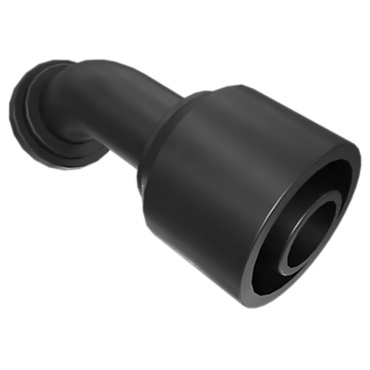

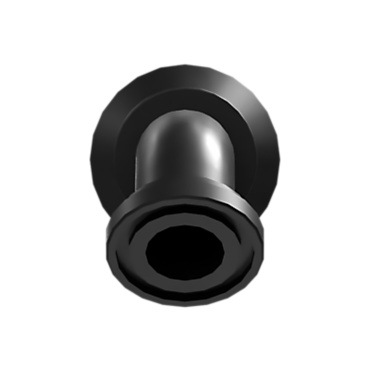

- Caterpillar 1242081 124-2081: Permanent Coupling | Cat Permanent Coupling - 45 Degree Code 61
1242081 CATERPILLAR 124-2081: Permanent Coupling | Cat Permanent Coupling - 45 Degree Code 61
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242081 |
| Name | 124-2081: Permanent Coupling | Cat Permanent Coupling - 45 Degree Code 61 |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 45 Deg
Connector Type: -20 CODE 61 FLANGE
Drop Length (mm): 30
Drop Length (in): 1.18
Length (mm): 137
Cut-Off Factor (mm): 93
Cut-Off Factor (in): 3.66
Recommended Hose Size (mm): 31.8
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R4
Seal Type: NBR 4J-0522, FKM 190-7673
Description: Permanent Coupling 20MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 45 Deg
Connector Type: -20 CODE 61 FLANGE
Drop Length (mm): 30
Drop Length (in): 1.18
Length (mm): 137
Cut-Off Factor (mm): 93
Cut-Off Factor (in): 3.66
Recommended Hose Size (mm): 31.8
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R4
Seal Type: NBR 4J-0522, FKM 190-7673
Description: Permanent Coupling 20MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
