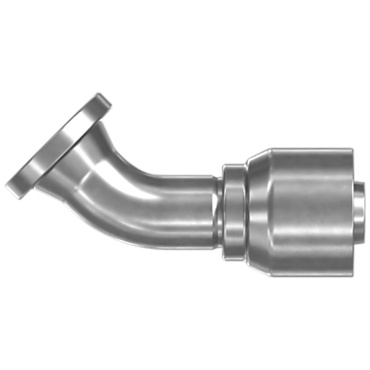

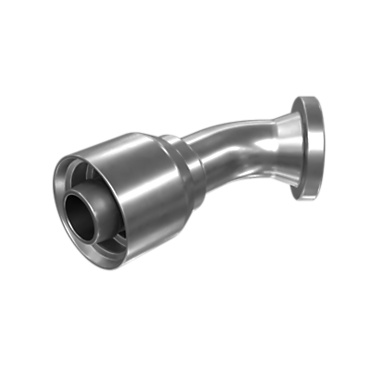

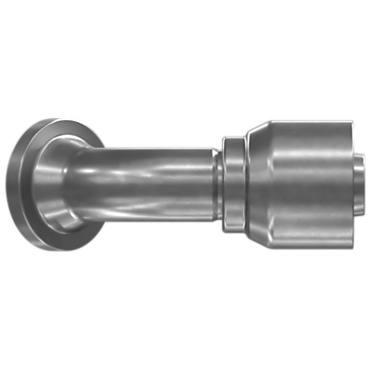

1242080 CATERPILLAR 124-2080: Permanent Coupling | Cat Permanent Coupling - 45 Degree Code 61
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242080 |
| Name | 124-2080: Permanent Coupling | Cat Permanent Coupling - 45 Degree Code 61 |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 45 Deg
Connector Type: -20 CODE 61 FLANGE
Drop Length (mm): 28
Drop Length (in): 1.1
Length (mm): 119
Cut-Off Factor (mm): 77
Cut-Off Factor (in): 3.03
Recommended Hose Size (mm): 25.4
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5, SAE 100R16, COOLANT HOSE
Seal Type: NBR 4J-0522, FKM 190-7673
Description: Permanent Coupling 16MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 45 Deg
Connector Type: -20 CODE 61 FLANGE
Drop Length (mm): 28
Drop Length (in): 1.1
Length (mm): 119
Cut-Off Factor (mm): 77
Cut-Off Factor (in): 3.03
Recommended Hose Size (mm): 25.4
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5, SAE 100R16, COOLANT HOSE
Seal Type: NBR 4J-0522, FKM 190-7673
Description: Permanent Coupling 16MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
