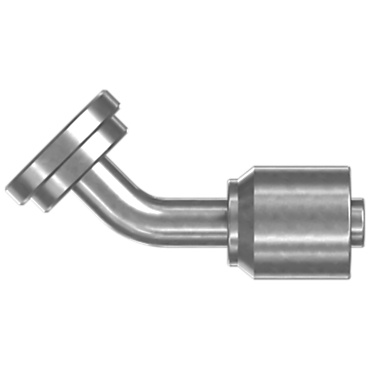

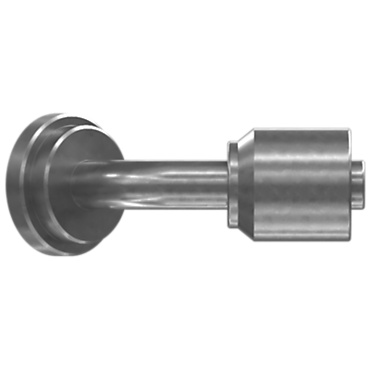

1242076 CATERPILLAR 124-2076: Permanent Coupling | Cat Permanent Coupling - 45 Degree Code 61

Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 45 Deg
Connector Type: -12 CODE 61 FLANGE
Drop Length (mm): 21
Drop Length (in): 0.83
Length (mm): 79
Cut-Off Factor (mm): 53
Cut-Off Factor (in): 2.09
Recommended Hose Size (mm): 12.7
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, SAE J1402, COOLANT HOSE, SAE 100R19
Seal Type: NBR 4J-5267, FKM 291-8218
Description: Permanent Coupling 8MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
