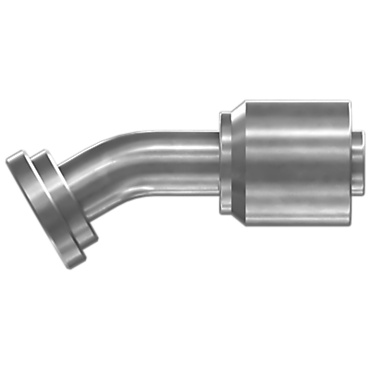

1242069 CATERPILLAR 124-2069: Permanent Coupling | Cat Permanent Coupling - 30 Degree Code 61

Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 30 Deg
Connector Type: -12 CODE 61 FLANGE
Drop Length (mm): 16
Drop Length (in): 0.63
Length (mm): 98
Cut-Off Factor (mm): 63
Cut-Off Factor (in): 2.48
Recommended Hose Size (mm): 19.1
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5, SAE 100R16, SAE 100R19, COOLANT HOSE
Seal Type: NBR 4J-5267, FKM 291-8218
Description: Permanent Coupling 12MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
