- Caterpillar 1242067 124-2067: Permanent Coupling | Cat Permanent Coupling - 22.5 Degree Code 61

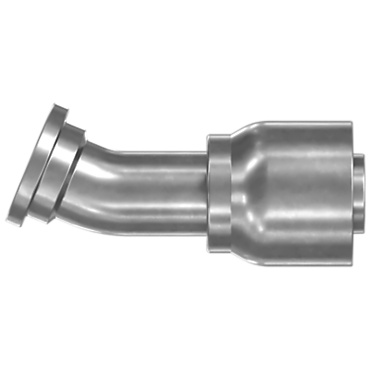

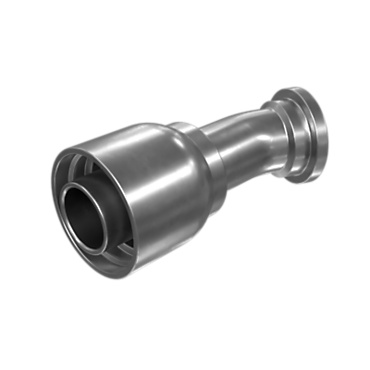

1242067 CATERPILLAR 124-2067: Permanent Coupling | Cat Permanent Coupling - 22.5 Degree Code 61
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242067 |
| Name | 124-2067: Permanent Coupling | Cat Permanent Coupling - 22.5 Degree Code 61 |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 22.5 Deg
Connector Type: -24 CODE 61 FLANGE
Drop Length (mm): 15
Drop Length (in): 0.59
Length (mm): 158
Cut-Off Factor (mm): 101
Cut-Off Factor (in): 3.98
Recommended Hose Size (mm): 38.1
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R4
Seal Type: NBR 4J-0524, FKM 234-3544
Description: Permanent Coupling 24MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 22.5 Deg
Connector Type: -24 CODE 61 FLANGE
Drop Length (mm): 15
Drop Length (in): 0.59
Length (mm): 158
Cut-Off Factor (mm): 101
Cut-Off Factor (in): 3.98
Recommended Hose Size (mm): 38.1
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R4
Seal Type: NBR 4J-0524, FKM 234-3544
Description: Permanent Coupling 24MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
