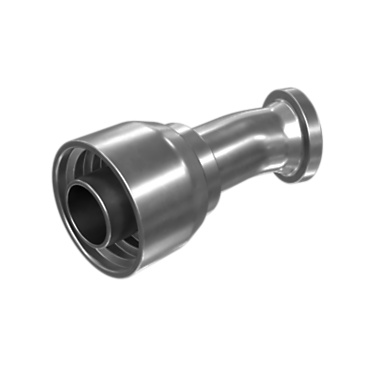

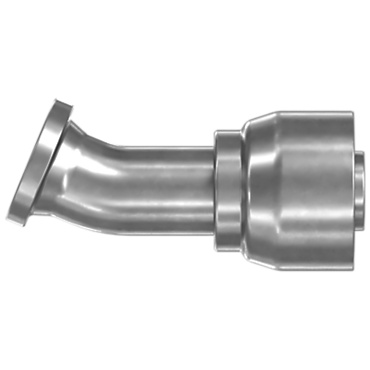

1242066 CATERPILLAR 124-2066: Permanent Coupling | Cat Permanent Coupling - 22.5 Degree Code 61
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242066 |
| Name | 124-2066: Permanent Coupling | Cat Permanent Coupling - 22.5 Degree Code 61 |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 22.5 Deg
Connector Type: -20 CODE 61 FLANGE
Drop Length (mm): 12
Drop Length (in): 0.47
Length (mm): 129
Cut-Off Factor (mm): 85
Cut-Off Factor (in): 3.35
Recommended Hose Size (mm): 31.8
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5
Seal Type: NBR 4J-0522, FKM 190-7673
Description: Permanent Coupling 20MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 22.5 Deg
Connector Type: -20 CODE 61 FLANGE
Drop Length (mm): 12
Drop Length (in): 0.47
Length (mm): 129
Cut-Off Factor (mm): 85
Cut-Off Factor (in): 3.35
Recommended Hose Size (mm): 31.8
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5
Seal Type: NBR 4J-0522, FKM 190-7673
Description: Permanent Coupling 20MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
