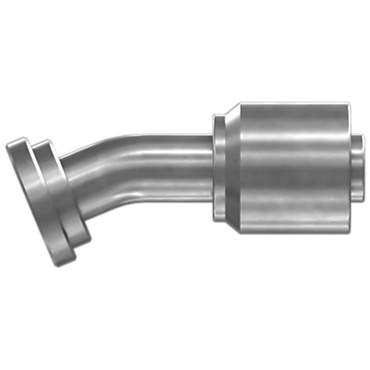

1242062 CATERPILLAR 124-2062: Permanent Coupling | Cat Permanent Coupling - 22.5 Degree Code 61

Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 22.5 Deg
Connector Type: -12 CODE 61 FLANGE
Drop Length (mm): 11
Drop Length (in): 0.43
Length (mm): 95
Cut-Off Factor (mm): 60
Cut-Off Factor (in): 2.36
Recommended Hose Size (mm): 19.1
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5, SAE 100R16, SAE 100R19, COOLANT HOSE
Seal Type: NBR 4J-5267, FKM 291-8218
Description: Permanent Coupling 12MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
