- Caterpillar 1242049 124-2049: Permanent Coupling | Cat Permanent Coupling INVERTED – 90 Degree Male Swivel

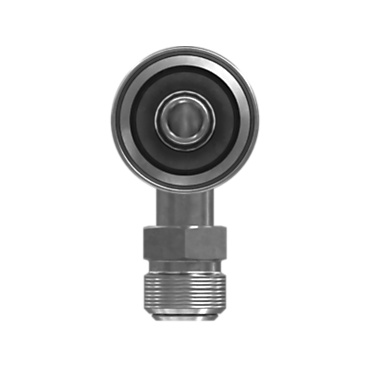

1242049 CATERPILLAR 124-2049: Permanent Coupling | Cat Permanent Coupling INVERTED – 90 Degree Male Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242049 |
| Name | 124-2049: Permanent Coupling | Cat Permanent Coupling INVERTED – 90 Degree Male Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -6 INVERTED MALE SWIVEL
Drop Length (mm): 38
Drop Length (in): 1.5
Length (mm): 62
Cut-Off Factor (mm): 33
Cut-Off Factor (in): 1.3
Recommended Hose Size (mm): 9.52
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, SAE J1402, COOLANT HOSE
Hex Size (mm): 15.87
Description: Permanent Coupling 6MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -6 INVERTED MALE SWIVEL
Drop Length (mm): 38
Drop Length (in): 1.5
Length (mm): 62
Cut-Off Factor (mm): 33
Cut-Off Factor (in): 1.3
Recommended Hose Size (mm): 9.52
Compatible With: SAE 100R1, SAE 100R2, SAE 100R5, SAE 100R16, SAE J1402, COOLANT HOSE
Hex Size (mm): 15.87
Description: Permanent Coupling 6MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
