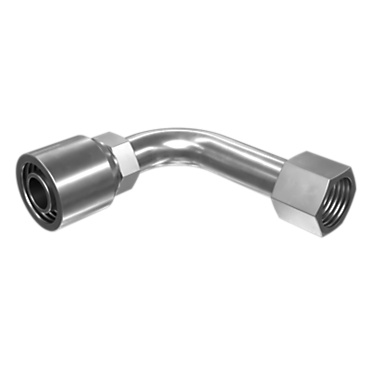

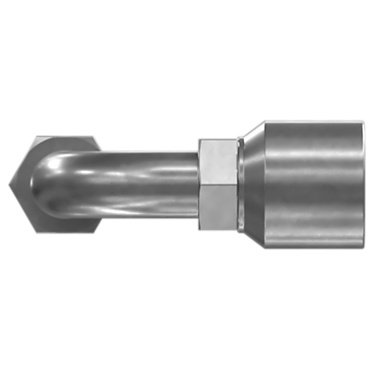

1242036 CATERPILLAR 124-2036: Permanent Coupling | Cat Permanent Coupling JIC – 90 Degree Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242036 |
| Name | 124-2036: Permanent Coupling | Cat Permanent Coupling JIC – 90 Degree Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -16 JIC FEMALE SWIVEL
Drop Length (mm): 111
Drop Length (in): 4.37
Length (mm): 114
Cut-Off Factor (mm): 76
Cut-Off Factor (in): 2.99
Recommended Hose Size (mm): 25.4
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5, SAE 100R16, COOLANT HOSE
Hex Size (mm): 38.1
Description: Permanent Coupling 16MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -16 JIC FEMALE SWIVEL
Drop Length (mm): 111
Drop Length (in): 4.37
Length (mm): 114
Cut-Off Factor (mm): 76
Cut-Off Factor (in): 2.99
Recommended Hose Size (mm): 25.4
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5, SAE 100R16, COOLANT HOSE
Hex Size (mm): 38.1
Description: Permanent Coupling 16MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
