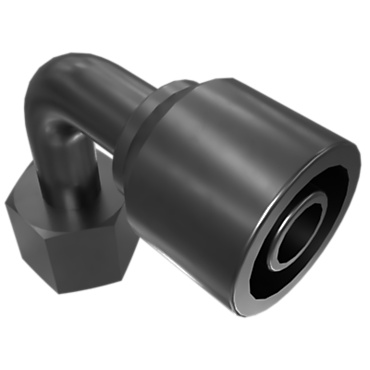

1242022 CATERPILLAR 124-2022: Permanent Coupling | Cat Permanent Coupling JIC – 90 Degree Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242022 |
| Name | 124-2022: Permanent Coupling | Cat Permanent Coupling JIC – 90 Degree Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -12 JIC FEMALE SWIVEL
Drop Length (mm): 52
Drop Length (in): 2.05
Length (mm): 77
Cut-Off Factor (mm): 47
Cut-Off Factor (in): 1.85
Recommended Hose Size (mm): 15.9
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, COOLANT HOSE
Hex Size (mm): 31.75
Description: Permanent Coupling 10MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -12 JIC FEMALE SWIVEL
Drop Length (mm): 52
Drop Length (in): 2.05
Length (mm): 77
Cut-Off Factor (mm): 47
Cut-Off Factor (in): 1.85
Recommended Hose Size (mm): 15.9
Compatible With: SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, COOLANT HOSE
Hex Size (mm): 31.75
Description: Permanent Coupling 10MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
