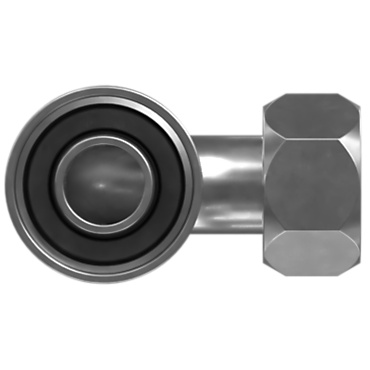

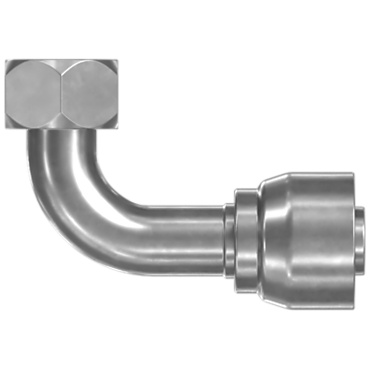

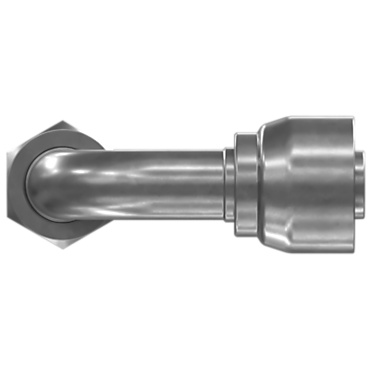

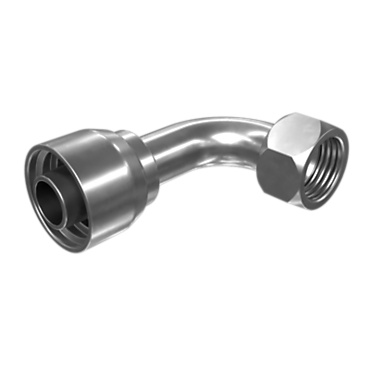

1242014 CATERPILLAR 124-2014: Permanent Coupling | Cat Permanent Coupling JIC – 90 Degree Female Swivel
| Manufacturer / Suplier | CATERPILLAR |
| Manufacturer's No. | 1242014 |
| Name | 124-2014: Permanent Coupling | Cat Permanent Coupling JIC – 90 Degree Female Swivel |
Connector: Permanent
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -20 JIC FEMALE SWIVEL
Drop Length (mm): 66
Drop Length (in): 2.6
Length (mm): 132
Cut-Off Factor (mm): 92
Cut-Off Factor (in): 3.62
Recommended Hose Size (mm): 31.8
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5
Hex Size (mm): 50.8
Description: Permanent Coupling 20MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
Material: STEEL
Coating: Zinc Plated
Shape: 90 Deg
Connector Type: -20 JIC FEMALE SWIVEL
Drop Length (mm): 66
Drop Length (in): 2.6
Length (mm): 132
Cut-Off Factor (mm): 92
Cut-Off Factor (in): 3.62
Recommended Hose Size (mm): 31.8
Compatible With: SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5
Hex Size (mm): 50.8
Description: Permanent Coupling 20MN
Applications: Permanent Coupling for use with hydraulic hose. For additional information contact your CAT local dealer
